GYE35-XL-KRR-B Radial insert ball bearing

Cylindrical - Round Bore

Category：

Agricultural Bearing

Key words：

Agricultural Bearing

Email:

13563003572@163.com

WhatsApp:

+8613508926705

Leave your message
Related Products

GYE35-XL-KRR-B Radial insert ball bearing

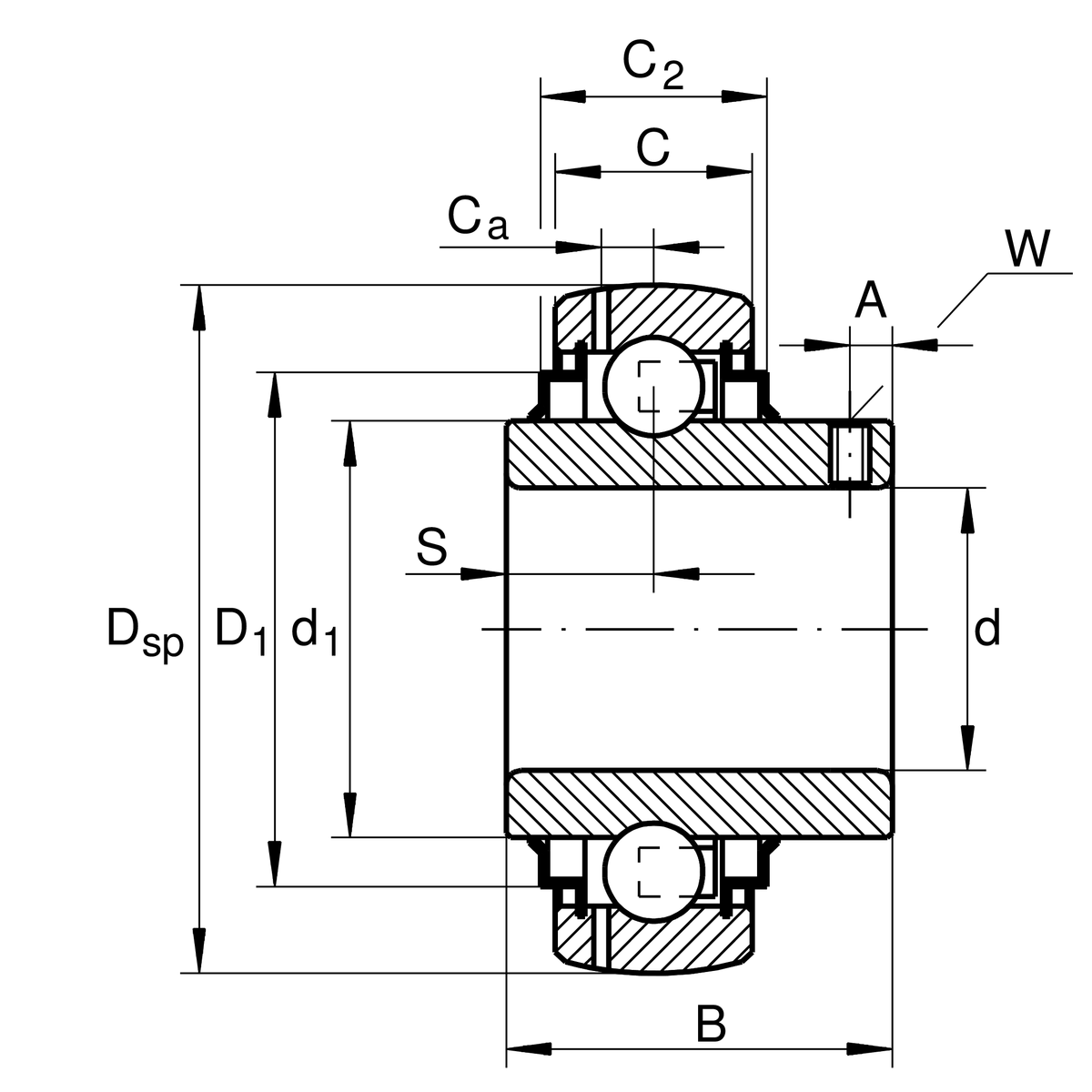

Main Dimensions & Performance Data

d

35 mm

 Bore diameter
DSP

72 mm

 Outside diameter
B

42,9 mm

 Width
Cr

25.500 N

 Basic dynamic load rating, radial
C0r

15.300 N

 Basic static load rating, radial
Cur

650 N

 Fatigue load limit, radial
≈m

0,44 kg

 Weight

Dimensions

C

19 mm

 Width, outer ring
C2

22,5 mm

 Sealing total width
S

17,5 mm

 Distance raceway
d1

46,8 mm

 Rib diameter inner ring
D1

60,3 mm

 Outside diameter seal
Ca

5,6 mm

 Distance to lubrication hole
A

6 mm

 Distance thread
W

3 mm

 Width of flats
