Housed bearing - 2 bolts fytb35tf-skf - 35 mm FYTB 35 TF

Cylindrical - Round Bore

Category：

Agricultural Bearing

Key words：

Agricultural Bearing

Email:

13563003572@163.com

WhatsApp:

+8613508926705

Leave your message

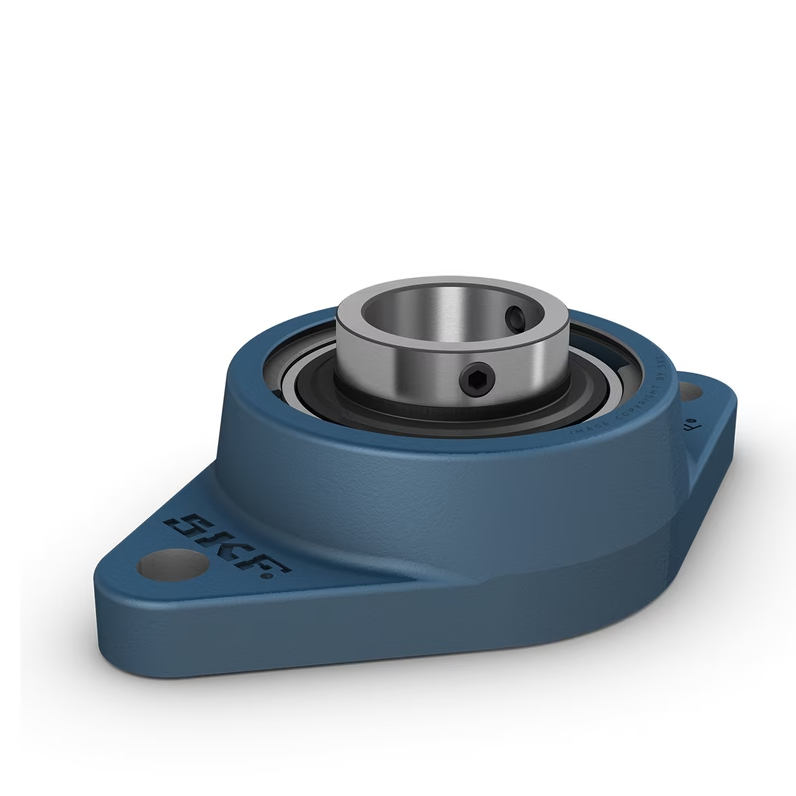

Oval flanged ball bearing unit with set screw locking, cast iron housing, ISO

These oval flanged ball bearing units are compliant with ISO standards. They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

Resist high levels of contamination
Designed for high temperatures and speeds
Accommodate relatively heavy loads
Cost-effective

Main Dimensions & Performance Data

d	35 mm	Bore diameter
D_SP	72 mm	Outside diameter
B	42,9 mm	Width
C_r	25.500 N	Basic dynamic load rating, radial
C_0r	15.300 N	Basic static load rating, radial
C_ur	650 N	Fatigue load limit, radial
≈m	0,44 kg	Weight

Dimensions

C	19 mm	Width, outer ring
C₂	22,5 mm	Sealing total width
S	17,5 mm	Distance raceway
d₁	46,8 mm	Rib diameter inner ring
D₁	60,3 mm	Outside diameter seal
C_a	5,6 mm	Distance to lubrication hole
A	6 mm	Distance thread
W	3 mm	Width of flats
